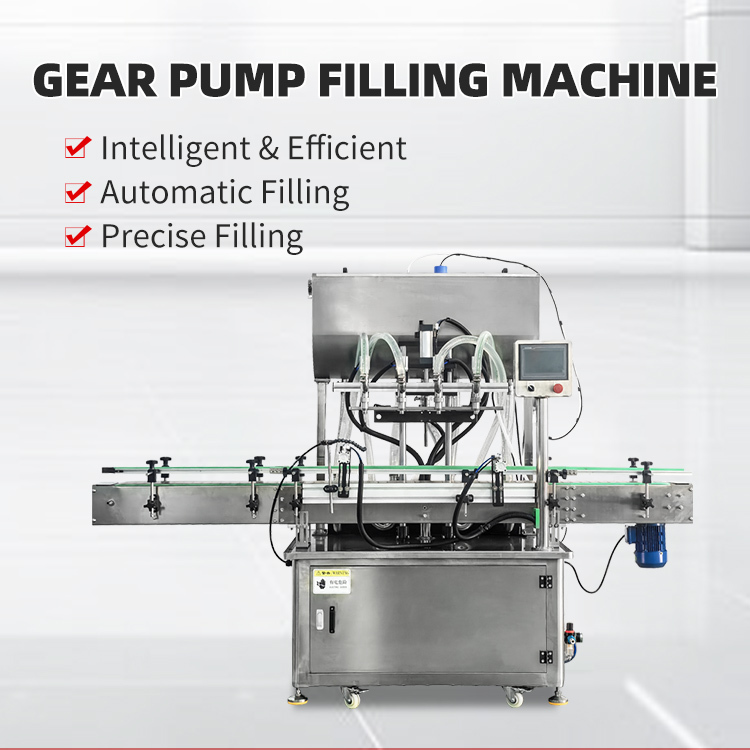

220V Gear Pump Filling Machine Compact Juice Bottling Machine For Industrial Applications

  • 1
  • 2
  • 3

Packaging Details : Wooden Case Packing

Supply Ability : 25 Sets/Per Year

Name : Gear Pump Filling Machine

Structural Advantage : Compact Structure, Long-term Stable Continuous Operation, Low Failure Rate, Easy Maintenance & Cleaning

Core Control System : / Mitsubishi PLC + Stable Frequency Conversion Drive System

Price : 3000USD-9500USD

Measuring Method : Positive Displacement Gear Pump Volumetric Metering, High-precision Frequency Conversion Control

Certification : ISO CE TUV

Place of Origin : Guangzhou China

Number of Filling Heads : 2/4/6/8/10 Heads (Fully Customizable to Capacity Requirements)

Safety & Compliance : Full Overload & Leakage Protection, CE & ISO9001 Compliant, Explosion-proof Model Optional

Filling Accuracy : ≤±0.3% FS (Industry-leading Stable Precision for Continuous Mass Production)

Delivery Time : 10-15 working days

Wetted Parts Material : Food-grade 304 Stainless Steel (Corrosion-resistant 316L & Wear-resistant Alloy Optional)

Brand Name : Datang

Core Functions & Protection : No Bottle No Filling, Anti-drip Suck-back System, Strong Self-priming Ability, Anti-foaming Structure

MOQ : 1

Applicable Materials : Medium to high viscosity fluids, oily liquids, pastes, syrups, honey, sauces, daily chemical & pharmaceutical products

Operation Mode : Industrial Color Touch Screen, One-key Adjustment for Filling Volume & Speed

Model Number : DT-GS5000L

Payment Terms : T/T,L/C

Contact Now

Gear Pump Filling Machine with High-precision Frequency Conversion Control and 4-nozzle Synchronous Large-flow Gear Pump for Industrial Applications
220V Gear Pump Filling Machine Compact Juice Bottling Machine For Industrial Applications220V Gear Pump Filling Machine Compact Juice Bottling Machine For Industrial Applications
Product Overview

Model DT-GS5000L Gear Pump Filling Machine is specially built for large-scale mass production in factories. It adopts a 4-nozzle synchronous large-flow gear pump drive system, which can realize high-speed and stable filling of 20-45 bottles per minute, supports long-term continuous operation, with stable filling accuracy and low failure rate, perfectly matching the mass production needs of high-speed bottled production lines.

Product Highlights & Core Selling Points
  1. 4-nozzle synchronous large-flow gear pump, with a rated maximum capacity of 45 bottles per minute, a maximum filling of 2700 bottles per hour, maximizing mass production efficiency
  2. Variable frequency stepless speed regulation system, free adjustment of capacity from 20-45 bottles per minute, can be seamlessly docked with capping and labeling production lines of different speeds
  3. Industrial-grade drive system, supports continuous and stable operation for more than 12 hours, with stable filling accuracy of ±1% under mass production conditions
  4. Wide filling range of 10-5000ml, large-flow design takes into account the high-speed filling needs of small-specification and large-capacity bottled products
  5. 4-nozzle synchronous calibration structure, consistent filling error of each nozzle under high-speed operation, product consistency ≥99.5%
  6. Anti-drip suck-back filling nozzle design, no drip leakage, no stringing during high-speed filling, ensuring the yield of finished products
220V Gear Pump Filling Machine Compact Juice Bottling Machine For Industrial Applications220V Gear Pump Filling Machine Compact Juice Bottling Machine For Industrial Applications220V Gear Pump Filling Machine Compact Juice Bottling Machine For Industrial Applications220V Gear Pump Filling Machine Compact Juice Bottling Machine For Industrial Applications
3. FAQ (Frequently Asked Questions)
  1. Q: What is the maximum capacity of this equipment?A: Under rated working conditions, it can reach up to 45 bottles per minute, with a maximum filling of 2700 bottles per hour, adapting to large-scale mass production needs.
  2. Q: Can the filling accuracy be guaranteed under high-speed operation?A: Yes. With 4-nozzle synchronous calibration structure, the filling accuracy is stably controlled within ±1% under mass production conditions, and the product weight consistency is ≥99.5%.
  3. Q: Does it support long-term continuous operation?A: Yes. It adopts an industrial-grade drive system and reinforced structure, which can support continuous and uninterrupted operation for more than 12 hours, adapting to the mass production needs of factories.
  4. Q: Can it be docked with high-speed screw capping machines and labeling machines?A: Yes. It is equipped with a standard production line linkage interface, which can be seamlessly docked with capping, screw capping and labeling equipment of different speeds, perfectly matching the production line rhythm.
  5. Q: Will drip leakage or stringing occur during high-speed filling?A: No. It is equipped with a standard suck-back anti-drip filling nozzle, which instantly sucks back residual material after filling, no drip leakage and no stringing under high-speed operation.
  6. Q: Can large-capacity bottled products also be filled at high speed?A: Yes. With large-flow gear pump design, it can adapt to the full filling range of 10-5000ml, and large-capacity bottled products can also maintain high-speed and stable filling.
  7. Q: Can the capacity be reduced according to the production plan?A: Yes. It supports variable frequency stepless speed regulation from 20 to 45 bottles per minute, and the capacity can be flexibly adjusted according to the production plan to adapt to different batch production needs.
  8. Q: Will the body shake during long-term operation?A: No. The whole machine has a reinforced body with optimized center of gravity design, the body is stable without shaking even at the highest speed, ensuring the filling accuracy.
  9. Q: Will the equipment automatically protect when an abnormality occurs?A: Yes. It is equipped with standard automatic alarm and shutdown functions for material shortage, overload and bottle jamming, which effectively protect the core components of the equipment and reduce the risk of failure.
  10. Q: What is the power supply requirement of the equipment?A: It adopts conventional mains supply of AC 220V 50Hz, the factory does not need to lay separate industrial lines, and it can be used after access.
